Tank Gauging Level Transmitters for Marine & Industrial Applications
APT 1000 Intelligent Transmitter:
Key features:
- Robust all welded submersible construction
- Choice of construction materials compatible with all common marine liquid measurement applications
- Process connections and fixings for side of tank or submersible installation
- Simple to install, accurate and stable, robust and reliable
- Gauge or Absolute options with a wide measuring span and 1% performance
- Dual -mode operation provides outputs as 4-20mA and RS485 Modbus
- Fully Programmable for calibrated range and application parameters
- DNV-GL Type Approved and IECEx / ATEX certified for hazardous areas (Zone 0)

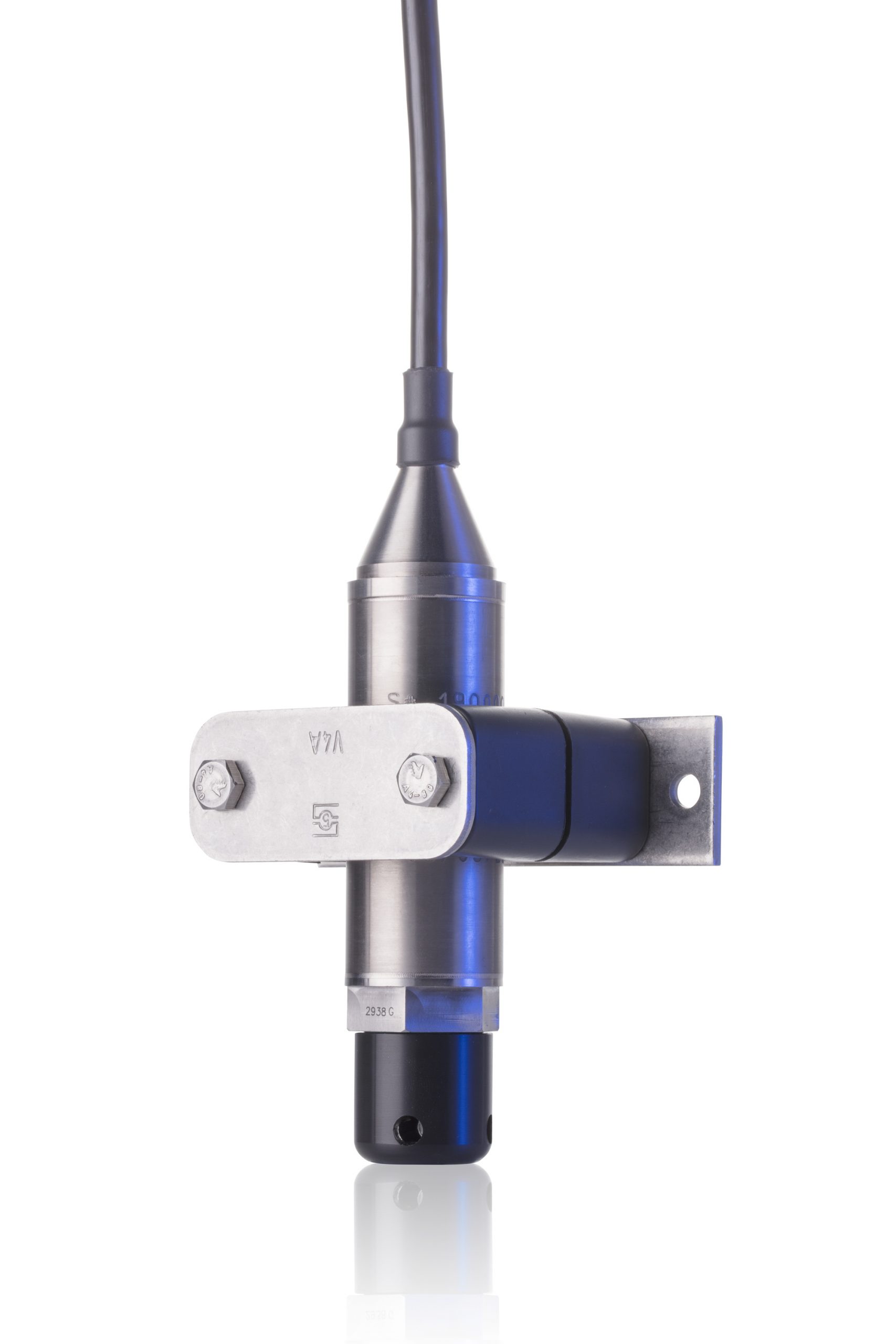

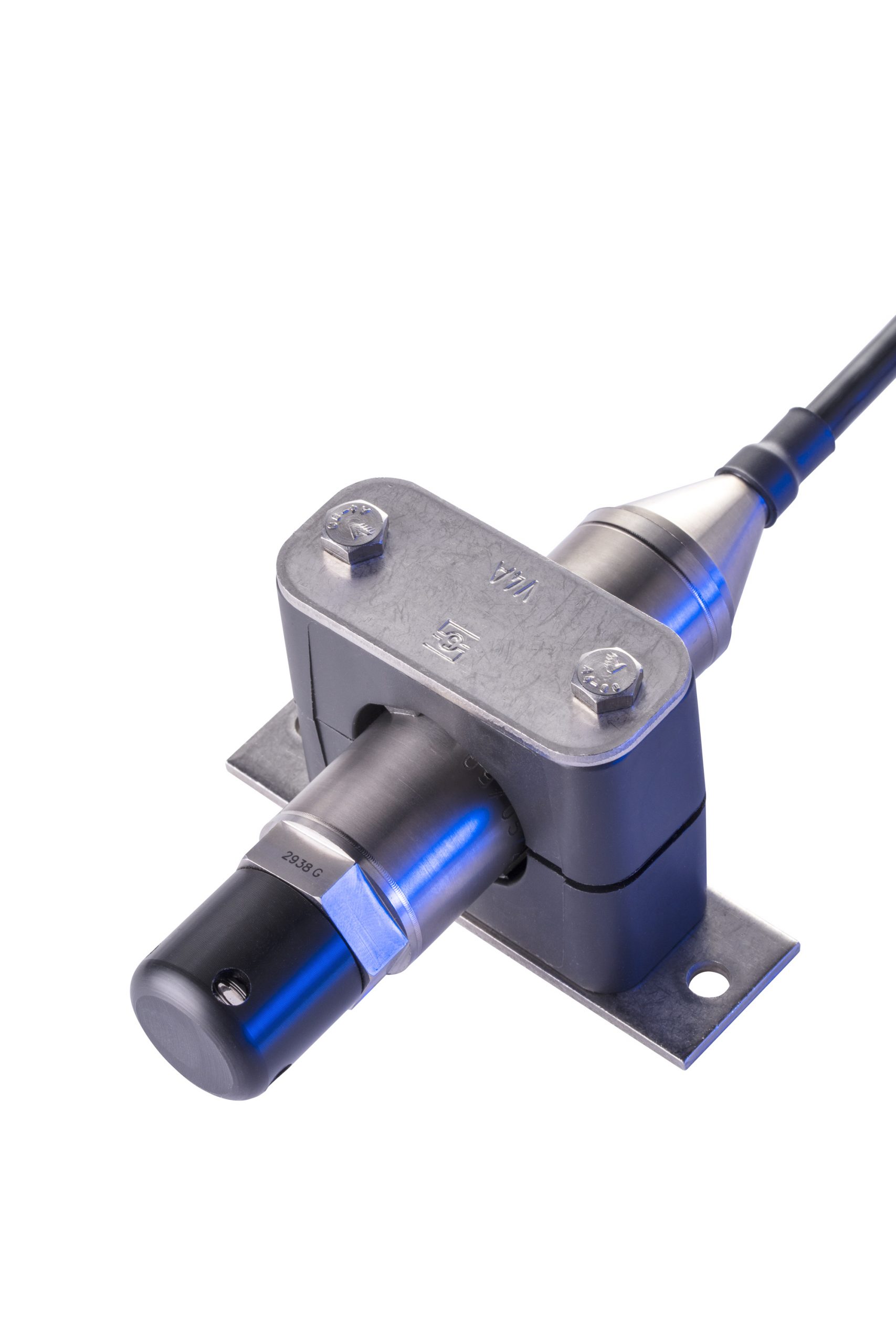

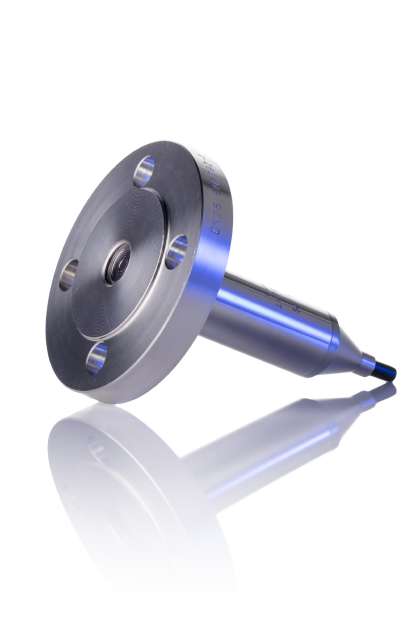

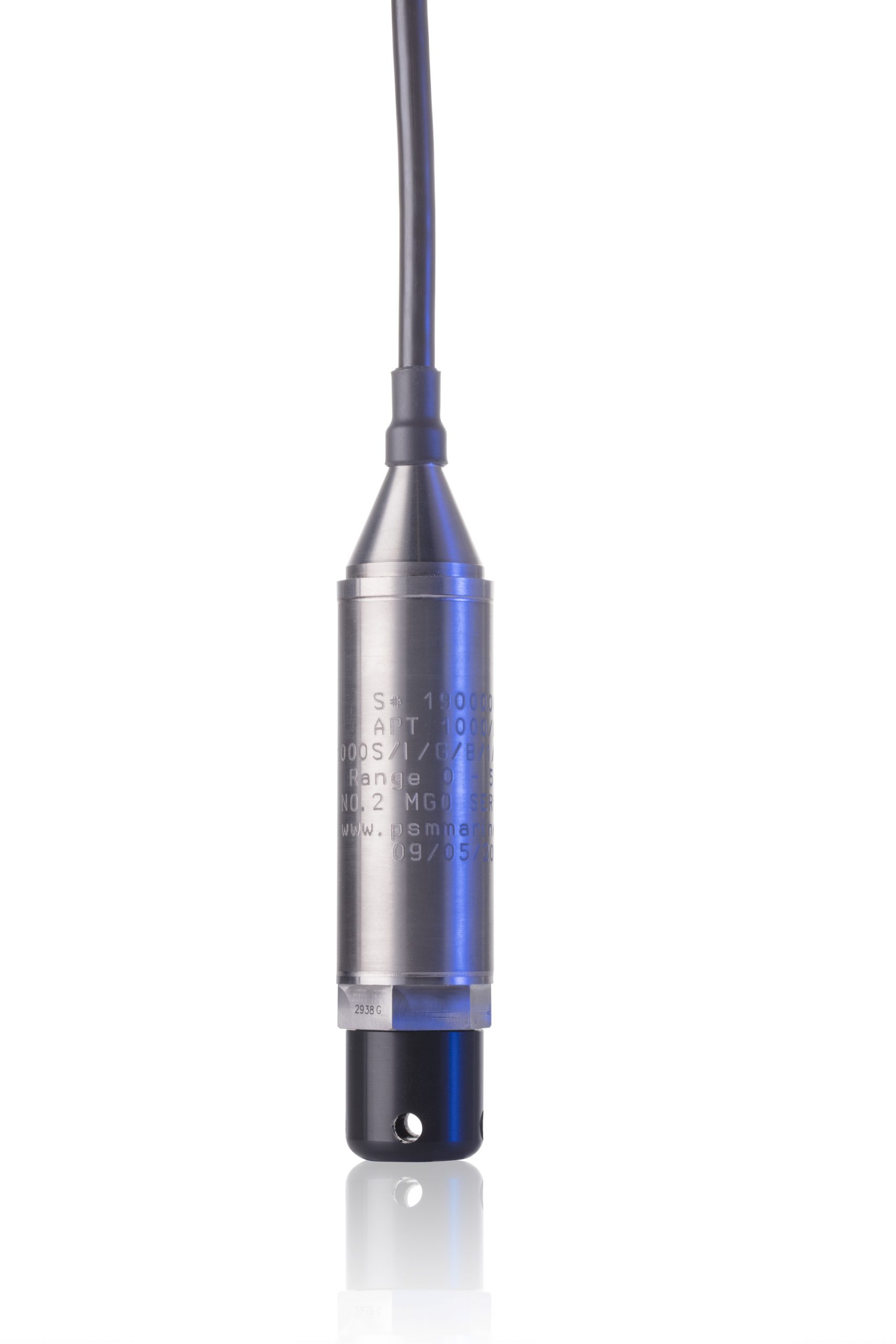

APT 500 Analogue Level Transmitter:
Key features:
- Fully submersible construction may be installed internal or external to tank with a variety of mounting options
- Choice of construction materials depending on application
- Stainless Steel – Service and Oils
- Titanium – Ballast & Draught
- Hastelloy/Tantalum – Ballast & Draught, Chemicals
- Robust construction with high overload tolerance
- Nominal measurement ranges from 0.2 to 60 bar – factory calibration allows 2:1 turndown
- Vented Gauge / Absolute versions
- Accuracy of +/-0.2% of full range
- Temperature compensated output over 0 to 70°C
- IECEx and ATEX certified for use in hazardous Areas (Zone 0)
- Marine Type Approved
