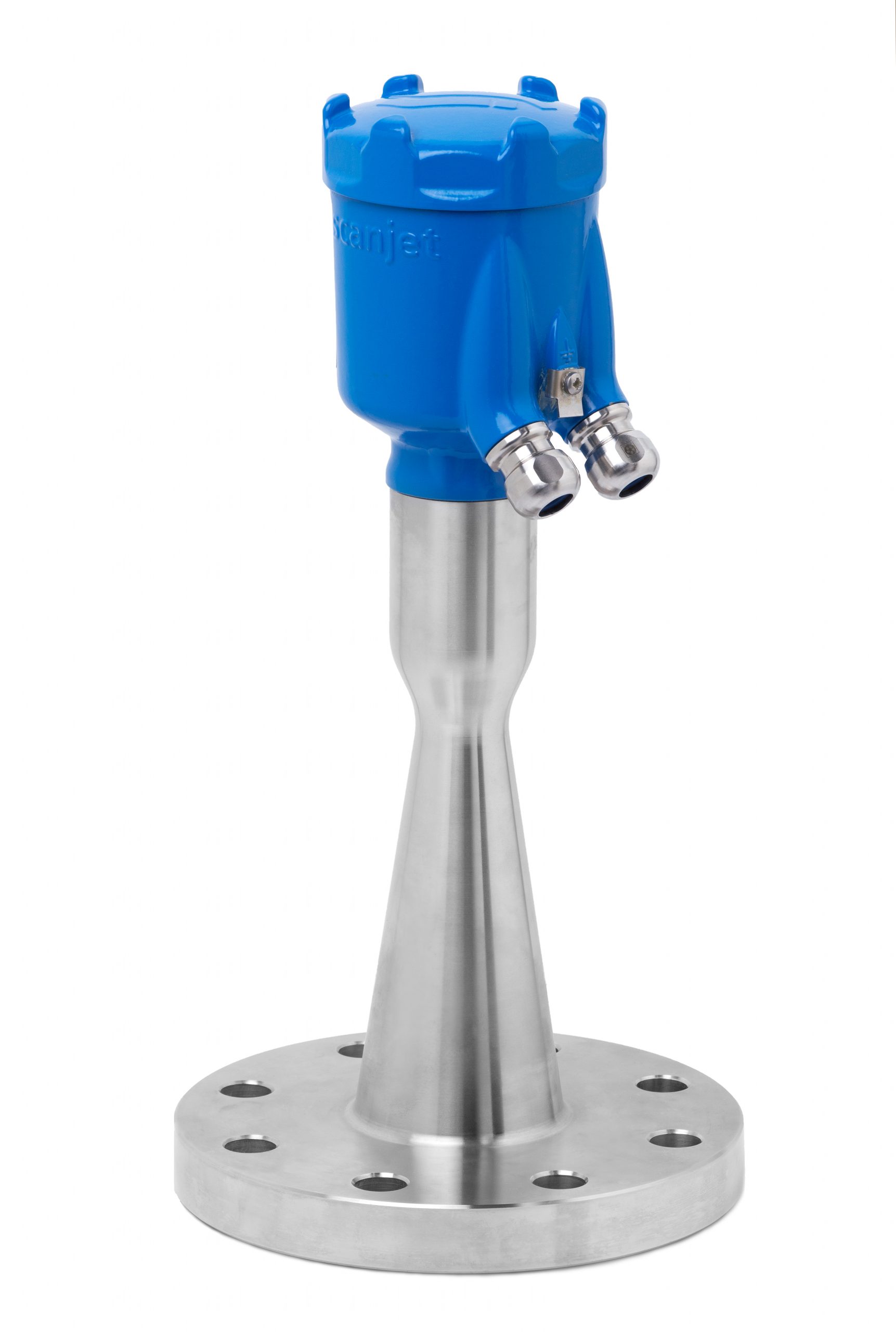

Scanrad Radar Level Transmitter

Scanrad Radar Level Transmitter

SC R8 80 GHz

Scanrad is a high accuracy pulse radar transmitter intended for tank level measurement for typical application for Ship-board duties on:

  • Barges
  • Chemical Carriers
  • Product Carriers

It is also suitable for general industrial application.

The compact design is offered with DN80 flanged mounting.

Inbuilt diagnostic software enables the user to map an installation to filter out echoes from In-tank obstacles to ensure accurate measurement

  • Compact 80 GHz design
  • Simple 2 wire connection
  • 4 – 20mA / HART / RS485 outputs
  • Range up to 45 Metres
  • Operation –40 to +80°C
  • Pressure Max 40Mpa
  • Accuracy +/- 2mm to +/- 5mm
  • Power up Self-test diagnostics
  • Automatic false echo suppression
  • Certified I.S. II 1G Ex ia IIC T6…T3 Ga
